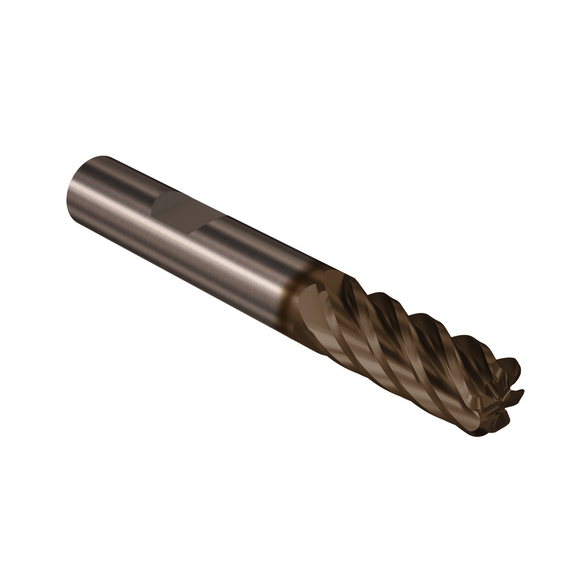

JABRO® Solid2 03060358 JABRO® Solid2 JS720 High Performance Single End End Mill, 16 mm Dia Cutter, 6 mm Corner Radius, 44 mm Length of Cut, 6 Flutes, 16 mm Dia Shank, 99 mm OAL, HXT/PVD Coated
- Mill Diameter: 16 mm
- Corner Radius: 6 mm
- Number of Flutes: 6
- Material: Solid Carbide
- Length of Cut: 44 mm
- Shank Diameter: 16 mm
- Shank Diameter - Metric: 16 mm
- Overall Length: 99 mm
- Cutting Direction: Right Hand
- Helix Angle: 38 deg
- Corner Radius - Metric: 6 mm
- Cutter Diameter: 16 mm
- Cutter Diameter - Metric: 16 mm
- Finish/Coating: HXT/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 44 mm
- Overall Length - Metric: 99 mm
- Shank Type: Weldon Flat
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
General Machining, Radial, Ramping, Plunging and Drilling
JABRO End Mill | High Performance Single End | Series: JABRO Solid2 JS720 | 16 mm Cutter Dia | 6 mm Corner Radius | 99 mm Overall Length | 44 mm Maximum Depth of Cut | 6 Flutes | Right Spiral Flute | 16 mm Shank Dia | Right Hand Cutting | 38 deg Helix Angle | Weldon Flat Shank | ANSI Code: JABRO Solid2 JS720160D2R600.3Z6-HXT | Solid Carbide | HXT/PVD Coated
