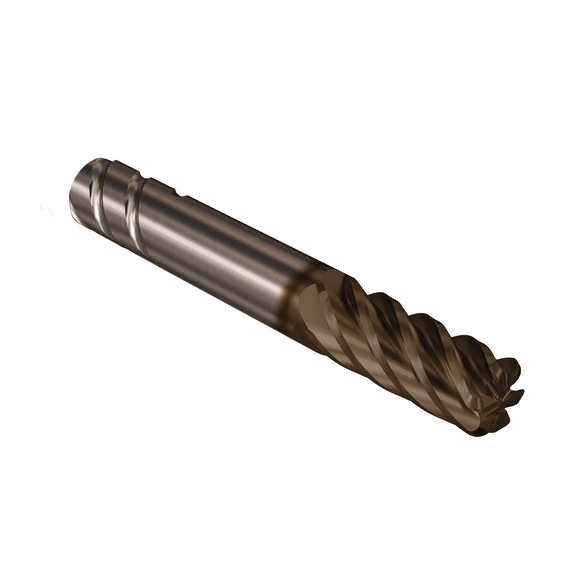

JABRO® Solid2 03060375 JABRO® Solid2 JS720 High Performance Single End End Mill, 6 mm Dia Cutter, 1 mm Corner Radius, 17 mm Length of Cut, 6 Flutes, 6 mm Dia Shank, 57 mm OAL, HXT/PVD Coated
- Mill Diameter: 6 mm
- Corner Radius: 1 mm
- Number of Flutes: 6
- Material: Solid Carbide
- Length of Cut: 17 mm
- Shank Diameter: 6 mm
- Overall Length: 57 mm
- Cutting Direction: Right Hand
- Helix Angle: 38 deg
- Corner Radius - Metric: 1 mm
- Cutter Diameter: 6 in
- Finish/Coating: HXT/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 17 mm
- Overall Length - Metric: 57 mm
- Shank Type: Safe-Lock™
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
General Machining, Radial, Ramping, Plunging and Drilling
JABRO End Mill | High Performance Single End | Series: JABRO Solid2 JS720 | 6 mm Cutter Dia | 1 mm Corner Radius | 57 mm Overall Length | 17 mm Maximum Depth of Cut | 6 Flutes | Right Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 38 deg Helix Angle | Safe-Lock Shank | ANSI Code: JABRO Solid2 JS720060D2R100.9Z6-HXT | Solid Carbide | HXT/PVD Coated
