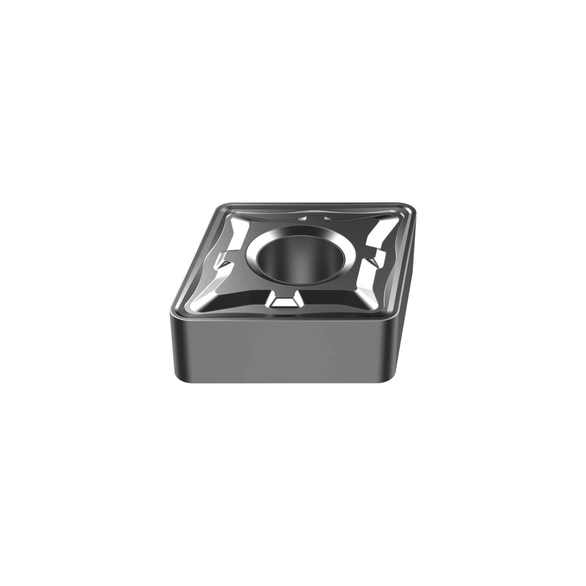

Seco 03064487 CNMG Insert Turning, CNMG Insert, Diamond Shape, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: TK1501
SECO 03064487
$31.51
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: Ti(C/N)/Al2O3/Cr
- Insert Style: CNMG
- Insert Size: 543
- Material: Carbide
- Inscribed Circle: 15.880 mm
- Thickness: 6.35 in
- Corner Radius: 1.200 mm
- Manufacturer's Grade: TK1501
- Chipbreaker: M5
- Coating: TiCN/Al2O3
- Coating Process: CVD
- Corner Radius - Metric: 1.2 mm
- Cutting Direction: Neutral
- Hole Diameter - Metric: 6.35 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 15.875 mm
- Insert Hand: Neutral
- ISO Number: CNMG 543-M5 TK1501
- Manufacturer Grade: TK1501
- Overall Length: 16.100 mm
- Part Number: 46775
- Primary Workpiece Material: Steel; Cast Iron
- Rake: Negative
- Relief Angle: 0 Degree
- Shape: Diamond
- Width: 0.634 in
Standard/Approvals:CNMG 543-M5 TK1501
Seco Tools 46775 CNMG | 543 | M5 | TK1501 | Carbide | Turning Insert
