Seco 74010680 Turning Insert, ANSI Code: SPU 421 HX, SPUN Insert, Material Grade: N, 120304 Insert, Squared Shape, 12 Seat, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturer's Grade: HX
SECO 74010680
$13.73
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: SPUN
- Insert Size: 120304
- Material: Carbide
- Length: 12.7 mm
- Thickness: 3.18 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: HX
- Cutting Direction: Neutral
- Included Angle: 90 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12.7 mm
- Material Grade: N
- Maximum Depth of Cut: 5 in
- Relief Angle: 11 deg
- Seat Size: 12
- Shape: Squared
- Width - Metric: 12.7 mm
- Finish: Uncoated
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
For finishing, medium-rough machining and rough machining

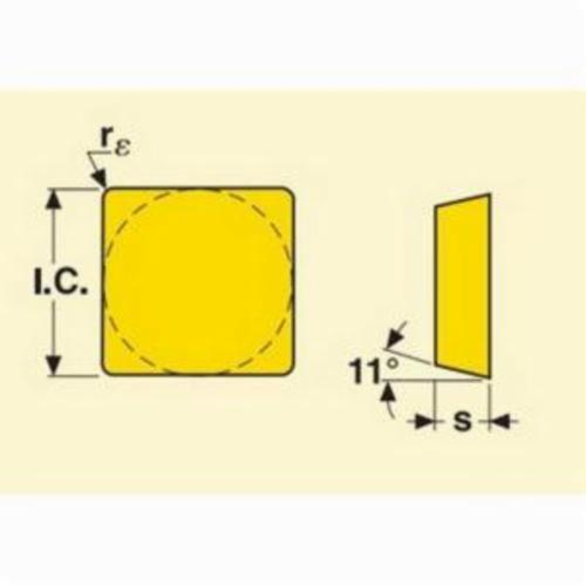

Seco Turning Insert | SPUN Insert | 120304 Insert | Square Shape | 5 mm Maximum Depth of Cut | 12.7 mm Inscribed Circle | 3.18 mm Thickness | 12.7 mm Width | 12.7 mm Length | 12 Seat | 0.4 mm Corner Radius | Manufacturer's Grade: HX | ANSI Code: SPU 421 HX | ISO Code: SPUN120304 HX | 90 deg Included Angle | 11 deg Relief Angle | Neutral Cutting Direction | Carbide | Uncoated | Material Grade: N | For Use On: Non-Ferrous Metals
