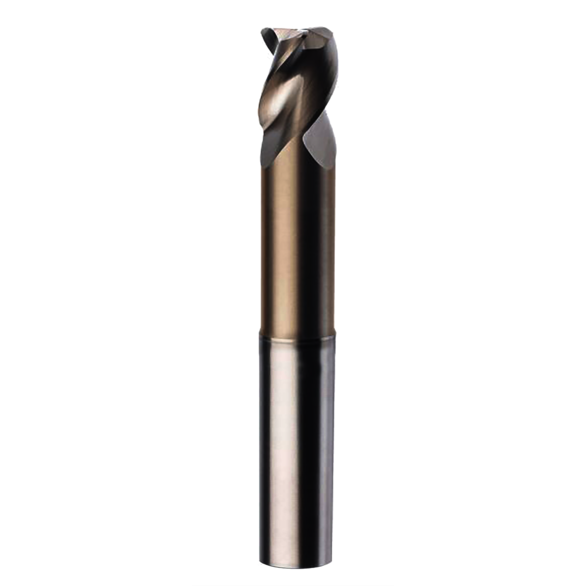

SGS 32755 S-Carb 43LC Center Cutting High Performance Long Reach Neck Positive Rake Single End End Mill, 1/4 in Dia Cutter, 0.01 in Corner Radius, 3/8 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 4 in OAL, Uncoated

S-Carb high performance end mills are designed specifically for aggressive aluminum and non-ferrous machining requiring a high level of material removal. The engineered 3-Flute design effectively manages large quantities of chips produced at high feed rates with lower cutting forces than conventional designs. A circular land stabilizes the tool while cutting and produces an excellent surface finish. With long reach, corner radius and neck options from inventory, there is an S-Carb option for just about every application.

• Solid carbide provides better rigidity than high speed steel
• It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
• They are used at reduced speeds for general applications on nonferrous metals
• Circular land provides stability with superior surface finishes
• Engineered flute design for effective chip removal at high feed rates
• Many options in number of flutes, reach and end geometry
• Positive rake angle
• External coolant
• Applicable materials: non-ferrous
• +0.0000/-0.00035 in D1, H6 D2 tolerances
• 1-1/2 in reach
• 0.01 in corner radius

Application: Aerospace, Medical, Power Generation, Automotive, Castings, Foundries, General Engineering, Mold and Die

SGS® High Performance End Mill | Long Reach Single End | Series: S-Carb | 43LC | 1/4 in Cutter Dia | 4 in Overall Length | 3/8 in Maximum Depth of Cut | 3 Flutes | Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 38 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | Uncoated
