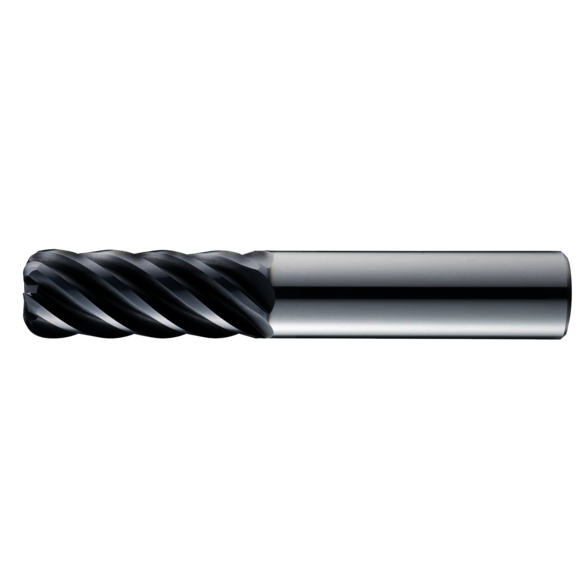

SGS 35129 T-Carb 51LC Center Cutting High Performance Long Reach Neck Positive Rake Single End End Mill, 3/8 in Dia Cutter, 0.03 in Corner Radius, 1/2 in Length of Cut, 6 Flutes, 3/8 in Dia Shank, 4 in OAL, TX Coated

The T-Carb 6-Flute high performance end mills are ideal for aggressive high speed machining using trochoidal and peel milling techniques. The unequal spacing of the larger flute count and variable pitch geometry allow the T-Carb to excel in multiple tooling operations calling for aggressive ramping and finishing, resulting in faster cycle times.

• Solid carbide provides better rigidity than high speed steel
• It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials
• Designed for aggressive ramping at high speeds where evacuation and load are a factor
• Eccentric relief provides superior strength and smoother surface finish
• Exceptional performance with minimal deflection in difficult to machine materials such as titanium alloys and stainless steels
• Unequal flute spacing
• Positive rake angle
• External coolant
• Applicable materials: steels, stainless steel, cast iron and titanium
• +0.000/-0.002 in D1, H6 D2 tolerances

Application: Aerospace, Medical, Power Generation, Automotive and General Engineering

SGS® High Performance End Mill | Corner Radius Long Reach Neck Single End | Series: T-Carb | 51LC | 3/8 in Cutter Dia | 4 in Overall Length | 1/2 in Maximum Depth of Cut | 6 Flutes | Spiral Flute | 3/8 in Shank Dia | Right Hand Cutting | 41 deg Helix Angle | Straight Shank | Micrograin Solid Carbide | TX Coated
