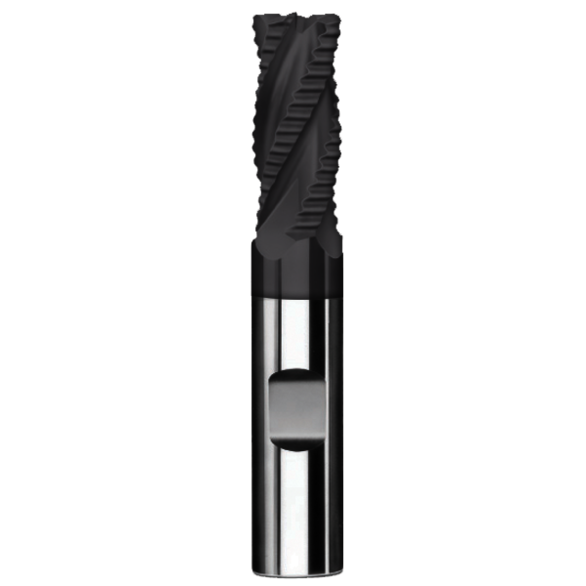

SGS 36226 62 Series Medium Length Roughing End Single Chip Breaker End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, AlTiN Coated
SGS 36226
$319.81
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Number of Flutes: 4
- Material: Micrograin Solid Carbide
- Length of Cut: 1-5/8 in
- Shank Diameter: 3/4 in
- Shank Diameter - Decimal: 0.75 in
- Shank Diameter - Fractional: 3/4 in
- Shank Diameter - Metric: 195 mm
- Overall Length: 4 mm
- Cutting Direction: Right Hand
- Helix Angle: 40 deg
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Diameter: 0.75 in
- Finish: AlTiN
- Finish/Coating: AlTiN Coated
- Length of Cut - Fractional: 1-5/8 in
- Overall Length - Metric: 4 mm
- Series: 62 Series
- Shank Type: Straight/Weldon Flat
- Type: Medium Length Roughing End Single Chip Breaker
- Flute Type: Spiral
- Diameter - Decimal: 0.75 in
SGS roughing end mills are available in 3 very distinct styles to meet the needs of specific material groups. The carbide is designed to compliment the demanding environment of roughing operations. Each version has an engineered chip breaking form to optimize performance in their key material groups.
- Special material for roughing applications
- Sinusoidal chip breaker form for maximum strength
- 3 distinct designs for various material groups
- Positive rake angle
- External coolant recomended
- Solid carbide provides better rigidity than high speed steel
- Applicable materials: titanium, inconel, Rene and Waspalloy
- +0.000 - 0.004 in D1, H6 in D2 tolerences
- 0.06 in corner radius
Application: Aerospace, Medical, Power Generation, Automotive, Mold & Die, Castings & Foundries and General Engineering
SGS® End Mill | Medium Length Roughing End Single End | Series: 62 | 3/4 in Cutter Dia | 4 in Overall Length | 1-5/8 in Maximum Depth of Cut | 4 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 40 deg Helix Angle | Straight/Weldon Flat Shank | Micrograin Solid Carbide | AlTiN Coated
