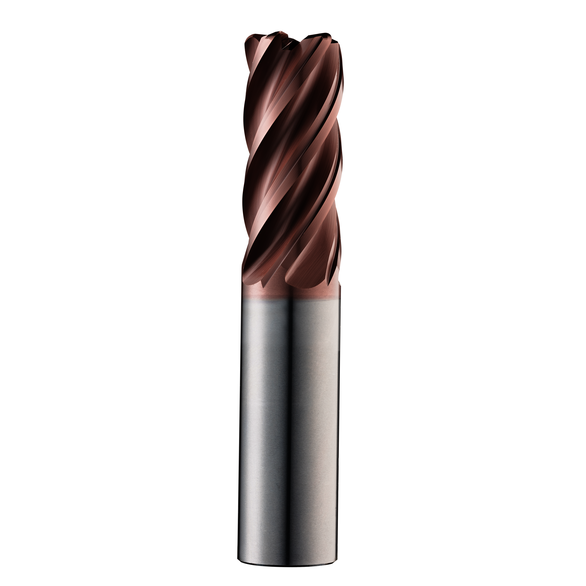

SGS 37092 Z-Carb-HPR Z5CR High Performance Non-Center Cutting Positive Rake Single End End Mill With Through Coolant, 3/4 in Dia Cutter, 0.12 in Corner Radius, 7/8 in Length of Cut, 5 Flutes, 3/4 in Dia Shank, 4 in OAL, AlTiSiN Nano Composite Coated
SGS 37092
$377.25
/ EA
Out of Stock
- Mill Diameter: 3/4 in
- Corner Radius: 0.12 in
- Number of Flutes: 5
- Material: Solid Carbide
- Length of Cut: 7/8 in
- Shank Diameter: 3/4 in
- Shank Diameter - Fractional: 3/4 in
- Overall Length: 4 mm
- Cutting Direction: Right Hand
- Helix Angle: 37 deg
- Cutter Diameter: 3/4 in
- Cutter Diameter - Fractional: 3/4 in
- Finish/Coating: AlTiSiN Nano Composite Coated
- Flute Type: Right Spiral
- Length of Cut - Fractional: 7/8 in
- Overall Length - Metric: 4 mm
- Series: Z-Carb-HPR Z5CR
- Shank Length: 3-1/8 in
- Shank Length - Fractional: 3-1/8 in
- Shank Type: Straight
- Type: High Performance Non-Center Cutting Positive Rake Single End
- The New Z-Carb HPR five flute roughing end mills are ideal for achieving high material removal rates (MRR) and a finish of 80 RMS or better on most materials
- The specialized five flute
Application: Aerospace Structural Components, Medical Implants, Automotive and Heavy Transportation, Energy and Power Generation, Castings and Forgings and General Engineering
SGS® End Mill | Corner Radius Fractional High Performance | Series: Z5C | 3/4 in Cutter Dia | 4 in Overall Length | 7/8 in Maximum Depth of Cut | 5 Flutes | Spiral Flute | 3/4 in Shank Dia | Right Hand Cutting | 37 deg Helix Angle | 3.125 in Shank Length | Carbide | TM Coated
