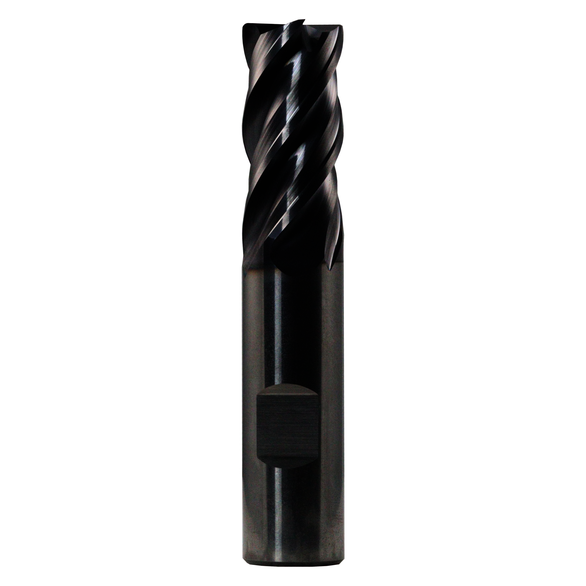

SGS 46475 Z-Carb-HTA™ ZH1MCR Center Cutting High Performance Positive Rake End Mill, 12 mm Dia Cutter, 3 mm Corner Radius, 26 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 83 mm OAL, AlTiN Coated

The Z-Carb HTA is designed with the same revolutionary chatter resistant geometries unique to the Z-Carb family of tools. The geometry has been designed and optimized for maximum performance in difficult to machine materials such as high temperature alloys commonly found in the aerospace industry. The Z-Carb HTA takes performance in these materials to a new level.

• Chatter resistant design for superior surface finishes and long tool life
• Optimized for handling the temperatures and demands of challenging materials such as high temp alloys
• Minimum tool deflection and maximum rigidity through high strength
• Positive rake angle
• External coolant
• Flute spacing unequal
• Applicable materials: high temp alloys and titanium
• +0.000/-0.050 mm D1, H6 D2 tolerances
• 3 mm corner radius

Application: Aerospace, Medical, Power Generation, Automotive, Mold and Die, Castings and Foundries, General Engineering

SGS® High Performance End Mill | Corner Radius Medium Length Variable Geometry | Series: Z-Carb™-HTA | ZH1MCR | 12 mm Cutter Dia | 83 mm Overall Length | 26 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 38 to 41 deg Helix Angle | Straight/Weldon Flat Shank | Micrograin Solid Carbide | AlTiN Coated
