SUMITOMO

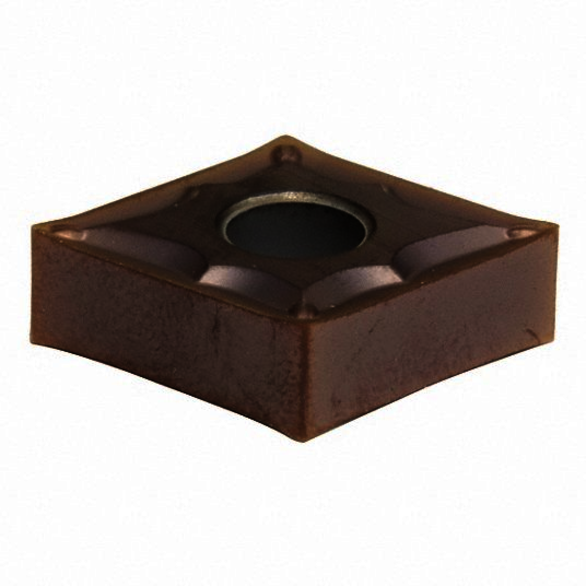

Sumitomo Electric Carbide CNMG432ESU-AC510U CNMG, 432, ESU, Turning Insert
SULMET CNMG432ESU-AC510U
$11.34
/ EA
Out of Stock
- Insert Style: CNMG
- Insert Size: 432
- Material: Carbide
- Thickness: 3/16 in
- Corner Radius: 1/32 in
- Chipbreaker: ESU
- Hole Diameter - Decimal: 0.2031 in
- Included Angle: 80 Degree
- Relief Angle: 0 Degree
- Shape: Diamond
Grades AC510U and AC520U expertly machine superalloys and stainless steels providing long tool life in theses difficult to machine materials. Not only do the grades machine these aerospace and medical materials, but can also machine steels and cast irons making these excellent options for job shops. Sumitomo also has introduced the MESI chipbreaker specifically to machine medical parts and other small parts. The MESI is able to handle depths of cut ranging from 2.0mm-6.0mm making the chipbreaker and excellent option when a part has varying depths of cut.
Standard/Approvals:CNMG120408N-SU, CNMG432ESU, ANSI, ISO 13399, AC510U
Sumitomo Electric Carbide CNMG432ESU-AC510U CNMG | 432 | ESU | AC510U | Carbide | Turning Insert
