SUMITOMO

Sumitomo Electric Carbide 5L00083 0.5713 in to 0.6102 in, 12XD, Replaceable-Tip Drill

SUMI 5L00083
$724.10 / EA
Out of Stock

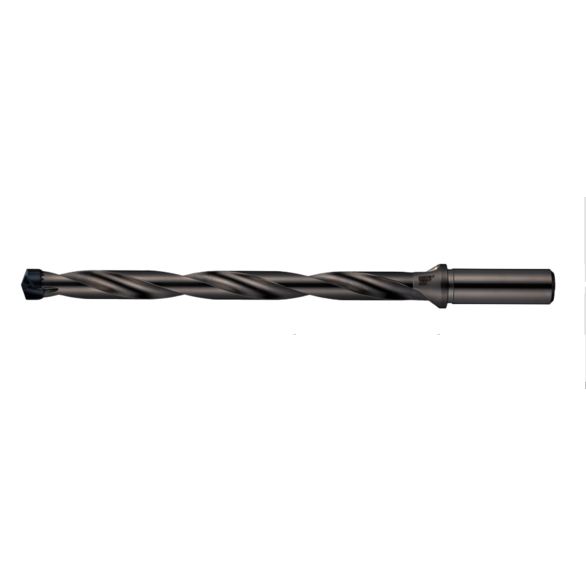

Image for SUMI 5L00083
  • Maximum Drill Depth: 180.00 mm
  • Shank Diameter - Decimal: 0.7874 in
  • Shank Diameter - Metric: 20.00 mm
  • Insert Style: SMDT
  • Flute Length: 197.30 mm
  • Overall Length: 250.30 mm
  • Series: SMD
  • Shank Length: 1.9685 in
  • Shank Type: Whistle Notch
  • Available in metric and inch diameters ranging from 0.4688” - 1.6535” (42.0mm)
  • Available in 3X, 5X, 8X & now 1.5X & 12X diameter ha bodies that can accept multiple diameters
  • Three styles of drill tips to maximize performance
  • SMDT-MTL - standard edge preparation for applications
  • SMD carbide tips have Sumitomo’s patented wear resistant DEXTM coatings
  • Ground serrations on back of drill tip allow for precise assembly and superior repeatability
  • Drill tips are capable of being reground
  • Coolant through drill bodies

Standard/Approvals:SMDH150-12D

Sumitomo Electric Carbide 5L00083 0.5713 in to | 0.6102 in | 12XD | 180.00 mm | 0.7874 in | Replaceable-Tip Drill
