SUMITOMO

Sumitomo Electric Carbide 736L320 0.4252 in, 180 Degree, Solid Carbide, Screw Machine Length Drill Bit

SUMI 736L320
$306.12 / EA
Out of Stock

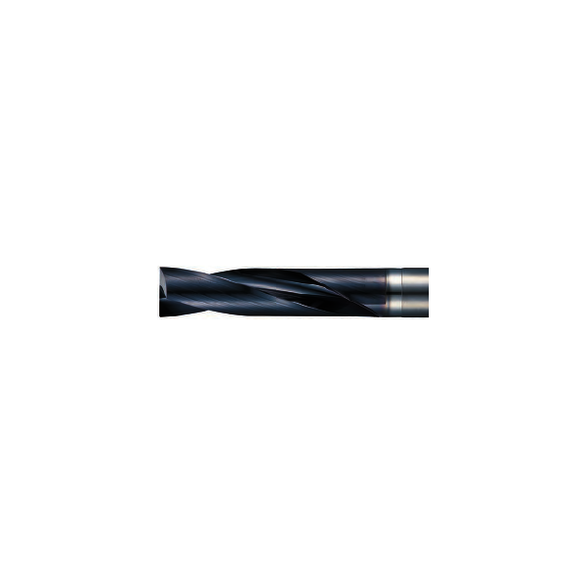

Image for SUMI 736L320
  • Overall Length: 116.00 mm
  • Flute Length: 48.60 mm
  • Shank Diameter - Metric: 11.00 mm
  • Applicable to various types of drilling thanks to a point angle of 180°
  • Applicable to high-efficiency spot facing, drilling in non-horizontal surfaces such as inclined and cylindrical surfaces, and interrupted drilling
  • Also reduces burrs at the hole exit
  • Improves machining stability
  • Achieves high rigidity by employing RS THINNING, which ensures thick web at the bottom
  • Excellent chip evacuation
  • Achieves excellent chip evacuation thanks to the wide chip pocket and a high-quality rake face shape
  • Excellent cutting edge strength
  • Achieves excellent cutting edge strength through optimized cutting edge design.

Standard/Approvals:MDF1080H3D

Application:

  • High-efficiency spot facing
  • Hole Expansion Drilling
  • Drilling in non-horizontal surface (inclined surface, cylindrical surface, etc.)
  • Interrupted drilling
  • Cross drilling
  • Pre-tap hole drilling in thin sheets
  • Deep Spot Facing
  • Avoiding Interference With Work Materials

    • Sumitomo Electric Carbide 736L320 0.4252 in | 180 Degree | Solid Carbide | Screw Machine Length Drill Bit
