SUMITOMO

Sumitomo Electric Carbide U105644 Hand of Holder Right Hand, Toolholder Style J, Rake Neutral, Indexable Turning Toolholder

SUMI U105644
$541.00 / EA
Out of Stock

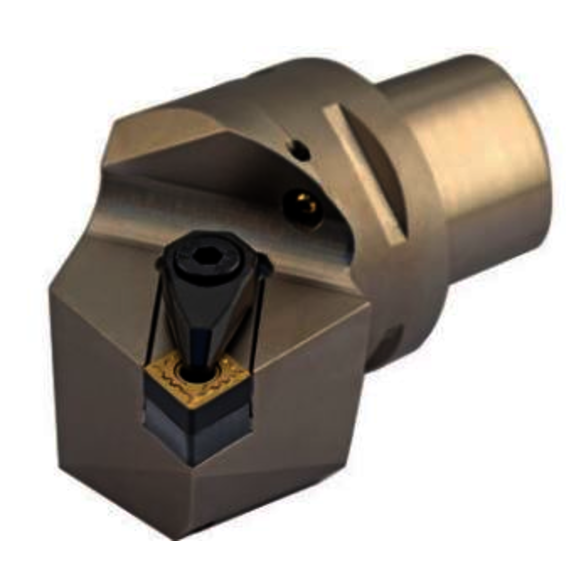

Image for SUMI U105644
  • Insert Compatibility: VB_ _ 33
  • Shank Width: 40.00 mm
  • Rake: Neutral
  • Overall Length: 50.00 mm
  • Shank Height: 40.00 mm
  • Lead Angle: -3 ±1 Degree
  • Head Length: 50.00 mm
  • Series: PSC-SVJB
  • The Sumitomo polygon shank holders enable an extremely high stiffness connection between machine and tool
  • The conical polygon can take high bending and torque moments based on the combination of the face contact to the spindle
  • This self-guiding coupling system offers high precision and repeatability
  • While using this easy and quick coupling system it is possible to gain higher machine utilization time as the set-up and tool change times are reduced
  • The compact design and the high stiffness connection to the spindle offer a versatile use on multi-task machines, machining centers and turning-milling centers
  • Monoblock system
  • No additional interfaces
  • Precise positioning; self-guiding with high repeatability
  • High stiffness supported by face contact of holder
  • Carbide shims to prevent holders from damage
  • Simple tool holder change and low-maintenance operation
  • Internal coolant supply directly to the cutting edge
  • Polygon shank and insert seat hardened for long holder life

Standard/Approvals:PSC40-SVJBR-27050-33

Sumitomo Electric Carbide U105644 Hand of Holder Right Hand | Toolholder Style J | Rake Neutral | 0 Degree | PSC-SVJB | Indexable Turning Toolholder
