TECHNIKS 22916-2.5 Precision Regular Length Single End End Mill Holder With Coolant Through Channel, 7/16 in Dia Hole, Tapered Shank, CAT40 Taper, 1.13 in Dia Nose, 2-1/2 in Projection

TECHNK 22916-2.5
$104.40 / EA
Out of Stock

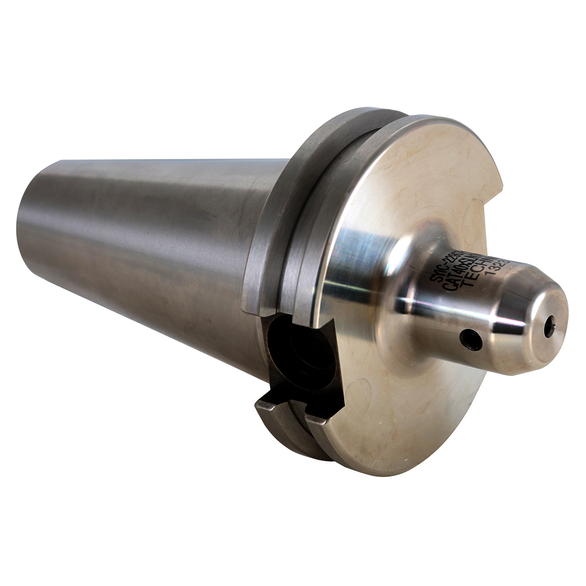

Image for TECHNK 22916-2.5
  • Nose Diameter: 1.13 in
  • Weight: 2.5
  • Body Diameter: 1.75 in
  • Body Width: 1.75 in
  • Bore Diameter: 0.438 in
  • Overall Diameter: 2.5 in
  • Overall Length: 5.19 in
  • Projection Length: 2.5 in
  • Taper: CAT40

End Mill Holders are manufactured to meet or exceed the H5 specification. H5 is an extremely accurate bore I.D. and provides improved T.I.R. for extended cutting tool life. When machining in tight areas make sure to try our Rigid Reach End Mill holders.

  • Bore tolerance for improved concentricity and tool life
  • Taper ground to AT3 specification for maximum spindle contact
  • Balanced to 15,000 RPM at G6.3

Application:

  • These devices can be used for any type of milling application on both vertical and horizontal milling machines.

    • Techniks 22916-2.5 CAT40 | Tapered | 7/16 in | 1.1300 in | 2-1/2 in | End Mill Holder & Adapter
