TECHNIKS 22939-9/16-3 Precision Single End Stubby Length End Mill Holder With Coolant Through Channel, 9/16 in Dia Hole, Tapered Shank, CAT50 Taper, 1-1/2 in Dia Nose, 3 in Projection

TECHNK 22939-9/16-3
$158.40 / EA
Out of Stock

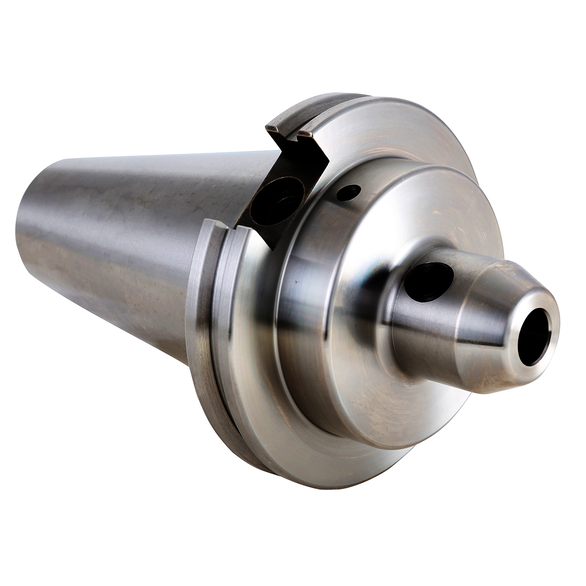

Image for TECHNK 22939-9/16-3
  • Nose Diameter: 1.5 in
  • Weight: 7.9
  • Body Diameter: 2.75 in
  • Body Width: 2.75 in
  • Bore Diameter: 0.625 in
  • Overall Diameter: 3.875 in
  • Overall Length: 7 in
  • Projection Length: 3 in
  • Taper: CAT50

End Mill Holders are manufactured to meet or exceed the H5 specification. H5 is an extremely accurate bore I.D. and provides improved T.I.R. for extended cutting tool life. When machining in tight areas make sure to try our Rigid Reach End Mill holders.

  • Bore tolerance for improved concentricity and tool life
  • Taper ground to AT3 specification for maximum spindle contact
  • Balanced to 15,000 RPM at G6.3

Application:

  • These devices can be used for any type of milling application on both vertical and horizontal milling machines.

    • Techniks 22939-9/16-3 CAT50 | Tapered | 9/16 in | 1-1/2 in | 3.0000 in | End Mill Holder & Adapter
