TECHNIKS 22943-6B Precision Single End End Mill Holder With CoolBLAST Coolant Through Channel, 7/8 in Dia Hole, Tapered Shank, CAT50 Taper, 1.88 in Dia Nose, 6 in Projection

TECHNK 22943-6B
$261.90 / EA
Out of Stock

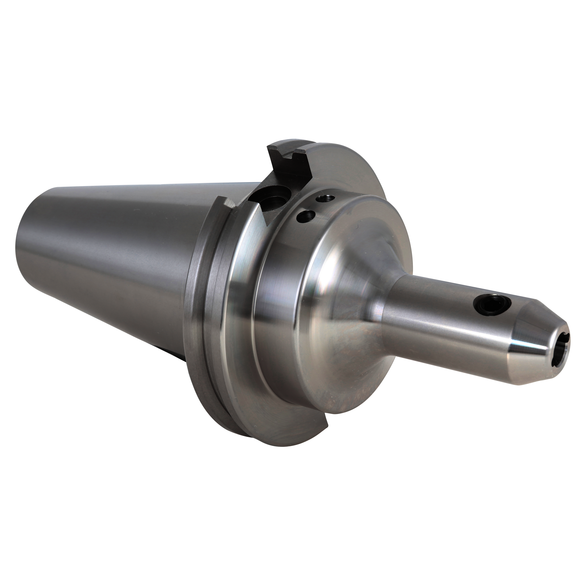

Image for TECHNK 22943-6B
  • Nose Diameter: 1.88 in
  • Weight: 9.9
  • Body Diameter: 2.75 in
  • Body Width: 2.75 in
  • Bore Diameter: 0.875 in
  • Overall Diameter: 3.875 in
  • Overall Length: 10 in
  • Projection Length: 6 in
  • Taper: CAT50

End mill holders provide a secure link between the tool and the rotating spindle of milling machines.

  • High precision bore is best in industry
  • Balanced to 15,000 RPM at G6.3
  • Taper ground to AT3 for maximum spindle contact.

Application:

  • These devices can be used for any type of milling application on both vertical and horizontal milling machines.

    • Techniks 22943-6B CAT50 | Taper Shank | 7/8 in | 1-7/8 in | 6.0000 in | End Mill Holder & Adapter
