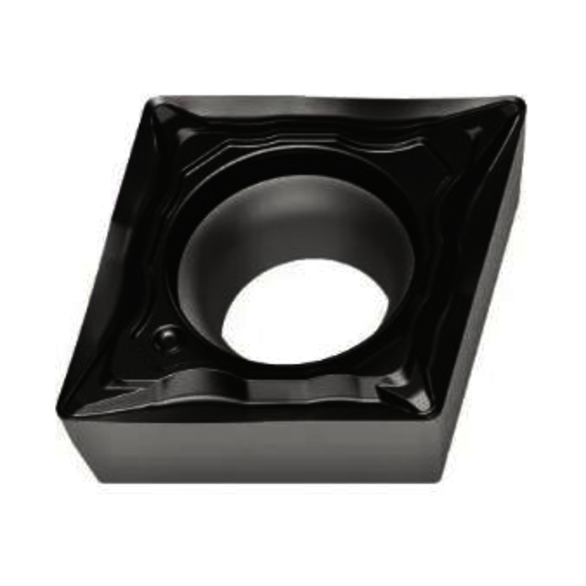

VALENI 7021354 0.031 in Corner Radius, 0.381 in Cutting Edge L, 0.003–0.008 in Feed per Revolution, Turning Inserts
VALENI 7021354
$16.68
/ Order multiples of 10 EA
Out of Stock
- Insert Style: CPMT
- Insert Size: 3(2.5)2
- Material: Solid Carbide
- Inscribed Circle: 9.525 mm
- Thickness: 3.970 mm
- Corner Radius: 0.031 in
- Chipbreaker: FM4
- Coating: TiCN+Al2O3
- Coating Process: CVD
- Cutting Edge Length: 0.381 in
- Depth of Cut: 0.004–0.059 in
- Hole Diameter - Metric: 4.400 mm
- Included Angle: 80 Degree
- Insert Hand: Neutral
- ISO Number: CPMT09T308-FM4 WMP20S
- Manufacturer Grade: WMP20S
- Part Number: 7021354
- Rake: Positive
- Relief Angle: 11 Degree
- Shape: Rhombic
- Finishing insert
- Excellent chip control
- Can also be used for precision boring
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WMP20S, CPMT09T308-FM4 WMP20S
Walter USA 7021354 CPMT | 3(2.5)2 | FM4 | WMP20S | Solid Carbide | Turning Insert
