WALTER 5409415 0.031 in Corner Radius, 1/2 in Inscribed Circle, 0.007–0.014 in Feed per Revolution, Turning Inserts

WALTER 5409415
$15.15 / EA
Out of Stock

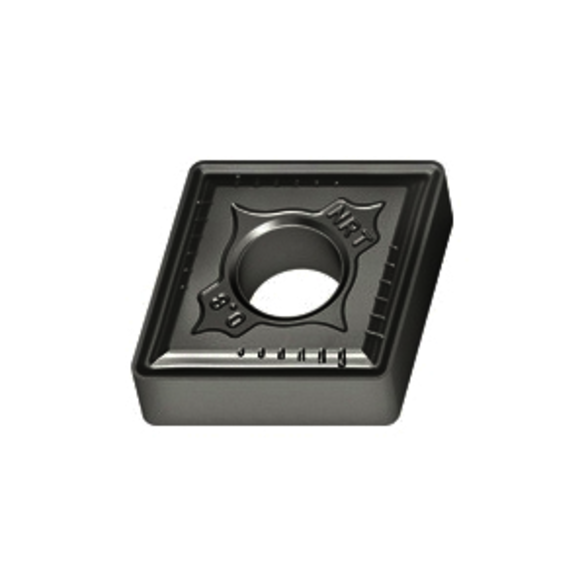

Image for WALTER 5409415
  • Insert Style: CNMG
  • Insert Size: 432
  • Material: Solid Carbide
  • Length: 0.508 in
  • Inscribed Circle: 12.700 mm
  • Thickness: 4.760 mm
  • Corner Radius: 0.031 in
  • Chipbreaker: NRT
  • Clearance Angle: 0 deg
  • Corner Angle: 80 deg
  • Cutting Edge Length: 0.508 in
  • Depth of Cut: 0.039–0.236 in
  • Hole: 0.203 in
  • Hole Diameter - Decimal: 13/64 in
  • Hole Diameter - Fractional: 13/64 in
  • Included Angle: 80 Degree
  • Inscribed Circle - Fractional: 1/2 in
  • Inscribed Circle Size: 0.5 in
  • Insert Hand: Neutral
  • ISO Number: CNMG120408-NRT WS10
  • Manufacturer Grade: WS10
  • Material Grade: WS10
  • Part Number: 5409415
  • Rake: Negative
  • Relief Angle: 0 Degree
  • Shape: Rhombic
  • Type: Negative Rake
  • Roughing titanium materials
  • Strong cutting edge with protective chamfer
  • Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
  • Mechanical post-treatment - unique residual stress rate, increased process reliability
  • Large, universal chip breaking area and longer tool life for ISO P geometries
  • Ground seating surface after coating for improved process reliability when working with interrupted cuts
  • Silver flank face indicator layer for extremely easy wear detection
  • Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
  • Extremely smooth rake face for excellent tribochemical wear resistance

Standard/Approvals:WS10, CNMG120408-NRT WS10

Walter USA 5409415 CNMG | 432 | NRT | WS10 | Solid Carbide | Turning Insert
