Walter Tools

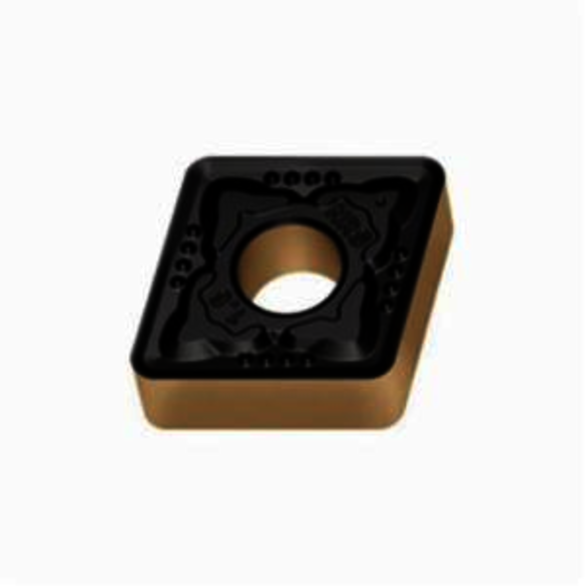

Walter 5866883 CNMG120408-NRS WSM10 Turning Insert
WALTER 5866883
$19.99
/ EA
Out of Stock
- Insert Style: CNMG
- Insert Size: 432
- Material: Solid Carbide
- Length: 0.508 in
- Inscribed Circle: 1/2 in
- Thickness: 3/16 in
- Corner Radius: 1/32 in
- Manufacturer's Grade: WSM10
- Chipbreaker: NRS
- Coating Process: PVD
- Corner Angle: 80 deg
- Cutting Edge Length: 0.508 in
- Finish: PVD
- Hole: 0.203 in
- Hole Diameter - Decimal: 0.202 in
- Hole Diameter - Metric: 5.160 mm
- Inscribed Circle Size: 0.5 in
- Insert Hand: Neutral
- ISO Number: CNMG120408-NRS WSM10
- Manufacturer Grade: WSM10
- Material Grade: S10; M10; P20
- Part Number: 5866883
- Rake: Negative
- Relief Angle: 0 Degree
- Series: Tiger-tec
- Shape: Diamond
- Type: Negative Rake
- Roughing, specially for high temperature alloy (Ni, Co, Fe-based alloys)
- Sharp cutting edge design
- Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times
- Mechanical post-treatment - unique residual stress rate, increased process reliability
- Large, universal chip breaking area and longer tool life for ISO P geometries
- Ground seating surface after coating for improved process reliability when working with interrupted cuts
- Silver flank face indicator layer for extremely easy wear detection
- Micro edge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation
- Extremely smooth rake face for excellent tribochemical wear resistance
Standard/Approvals:WSM10, CNMG120408-NRS WSM10
Walter USA 5866883 CNMG | 432 | NRS | WSM10 | Solid Carbide | Turning Insert
